Major equipments: scraper chain, machine shell, sprocket, protection device, drive, tension device
Applications: specially designed en masse flight conveyor applied in bulk powder and pallet materials

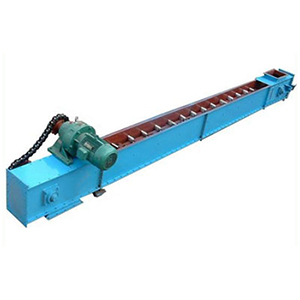

MS scraper conveyor adopts non-metal wear-resistant material or wear-resistant material as main wear-resistant layer, enables high efficient conveying of a large variety of pallets or powder materials. This welded cranked link chain en masse flight conveyor is widely applicable in feed, rice, flour plants, oil plants, grain storage, port etc.
Featured characteristics of MS scraper conveyor:
● Simple structure and flexible configuration. MS scraper chain conveyor allows multiple points feeding and discharging, which is applicable for various conveying of materials.
● Assembling head and return pulley. The assemble structure ensures convenient disassemble and repair in work.
● Durable bending chain. MC scraper conveyor adopts heavy-duty welding bending chain, special treated shaft, chain plate and scrapping, ensuring high strength, high durability of conveyor.
● High wear-resistant material wiper blade. The adoption of ultrahigh molecular weight polyethylene assures high strength and wear-resistance of wiper blade of MC scraper conveyor, avoids direct friction between conveyors and wiper blade shell, reduces operating noise and extend operation lifetime of conveyor effectively.
● Removable equipment cover, bottom plate and side plate. Uniquely designed disassemble structure enable easy maintenance and replacement.
● Slide rain tensioning device of scraper conveyor tail part. This special design of tail part is featured by low failure rate, convenient operation and easy check.
● Multi safety device assure reliable operation. MS scraper conveyor configures with maintenance gate, viewing window, dust proof exhaust opening, blockage monitoring, axis temperature detection.
● Good appearance and high elevating capacity. The MS scraper conveyor owns long operating life, low energy consumption, and low material damage rate in all kinds of application fields.
● Functional conveyor with multiple applications. MS en masse conveyor is widely applicable in a variety size feed plant, flour and rice plant, oil plant, grain storage, port etc.
Standard of MC scraper conveyor:
Material bulk density: γ=0.1-2.0t/m3
Material temperature: ≤100°
Conveying length: ≤100m
|
Model |
Conveying Capacity (m³/h) |
Line Speed Chian (m/s) |
Safety slope (°) |
Conveying Length (Max) (m) |
|
MS16 |
0~20 |
0.20~0.60 |
≤15° |
60 |
|
MS25 |
20~70 |
0.20~0.60 |
≤15° |
60 |
|
MS32 |
50~170 |
0.20~0.60 |
≤15° |
80 |
|
MS42 |
170~260 |
0.20~0.60 |
≤15° |
80 |
|
MS50 |
260~500 |
0.20~0.65 |
≤15° |
80 |
|
MS63 |
500~620 |
0.20~0.65 |
≤15° |
80 |
|
MS80 |
620~900 |
0.20~0.75 |
≤15° |
100 |
|
MS100 |
900~1150 |
0.20~0.75 |
≤15° |
100 |
|
MS120 |
1150~1450 |
0.20~0.85 |
≤15° |
100 |
|
MS140 |
1450~1850 |
0.20~0.85 |
≤15° |
100 |
Note: Parameters in the table are common configuration, for any personalized requirement, please contact us free via email or call us for consultancy. We will give detailed answers and suggestion to your requirement.
Conveyors are widely applicable in port, oil, grain, corn deep processing, feed, flour, brewing, ores, chemicals, building materials, light industrials etc.
