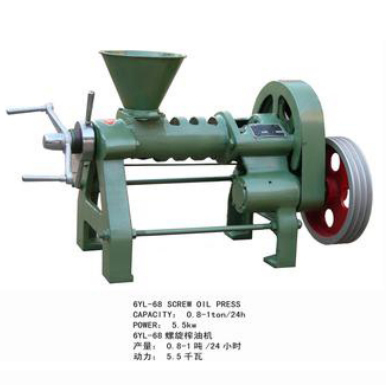

6YL-68C Oil Press Machine

6YL-68 oil pressing machinery is suitable for medium-small scale oil factory and private user, as well as the pre-pressing of extraction oil factory.

We're here to help:

Easy ways to get the answers you need.

Tel: +86-027-8790 7188

Fax: +86-027-8790 7188

Email: support@htoilmachine.com

Features

Technical Data

Application

Services

6YL-68C oil press machine can pressed all kinds of plant oil materials such as peanut, soybean, rapeseed, cottonseed, sesame, olive, sunflower, coconut,etc. Suitable for medium-small scale oil factory and private user, as well as the pre-pressing of extraction oil factory.

Hot selling high output sunflower seed screw oil press machine 6YL-68

Hot selling high output sunflower seed screw oil press machine 6YL-68

6YL-68C oil press operating principle:

1.When oil press is on work, material enters the extruding chamber from the hopper and then moves forwards by the rotating pressing screw and is pressed.

2. Under high temperature condition in the chamber, there is quite strong friction among press screw, chamber and the oil materials.

3. On the other hand, root diameter of the pressing screw carries larger from one end to the other.

4. Hence when rotating, the thread not only pushes particles moving forwards but also turns them outwards as well.

5. Meanwhile, particles adjacent the screw will rotate along with screw’s rotating, causing every particle inside the chamber to possess different speed.

6. Therefore, relative movement among particles creates neat which is necessary during manufacturing because of helping protein change property, damage colloid, increase plasticity, decrease oil’s elasticity, resulting in high oil.

6YL series oil press machine

Model	Capacity	Power	Electric machinery	Packing size(mm)	Gross and net weight (kg)
6YL-68 oil press machine	40-50Kg/h	5.5KW	380V/50HZ/Triple phase	880440770	160/140
6YL-80 oil press machine	80-150Kg/h	5.5KW	380V/50HZ/Triple phase	1510440700	350/330
6YL-95/100 oil press machine	150-200Kg/h	7.5KW	380V/50HZ/Triple phase	1910550765	450/420
6YL-120 oil press machine	200-300Kg/h	11KW	380V/50HZ/Triple phase	2100630770	530/500
6YL-130 oil press machine	300-400Kg/h	15KW	380V/50HZ/Triple phase	2280700780	780/750
6YL-160 oil press machine	400-600Kg/h	18.5KW	380V/50HZ/Triple phase	2050600850	950/900

Oil Yield According to Different Oil Bearing Materials:

Raw Material	Capacity(KG/HR)	Output Rate(%)	Output Efficiency
Cotton Seeds	50-60	12-14	65-72
Soybeans	28-37	10-16	61-65
Peanuts	45-60	35-45	91-92
Rape Seeds	45-60/p>	30-38	82-85

Start a mini oil pressing line with 6YL-68 Screw oil press machine:

You can start a small mini oil pressing line with our 6YL-68 Screw oil press machine. This mini oil pressing line is specially ideal for small oil making workshop or factory!

Hot selling high output sunflower seed screw oil press machine 6YL-68

Details show:

Hot selling high output sunflower seed screw oil press machine 6YL-68

6YL-68C oil press technical parameters:

Model	YL-68C
shaft speed	35-38r/min
Power Matching	7.5KW
Belt	B type 3200×4000
Processing capacity	30-50kg/H
Weight	100KG
Dimensions	4309101375
Material	alloy steel/ cast steel
Oil yield	30%-50%
Packing	plywood cases
Residue oil rate	< 7%

The screw oil press machine could used for pressing soybean,olive，peanut,sesame,sunflower seed,rapeseed,cottonseed,copra,castor bean,hemp,flaxseed,almond,nuts,palm kernel and so on

Main advantage of screw oil press machine:

1. High oil yield, small space occupied and low expense on equipment and electriciy.
2. Multi-functional used for pressing various of oil crops.
3. Simple operation and stable production performance.
4. Various machine models for options according to the capacity.
5. Widely used by small workshop and factories and hot selling at home and abroad.

We assure the most precise design, high quality 6YL-68 Oil Press Machine, mature project installation, and perfect after sale services.
