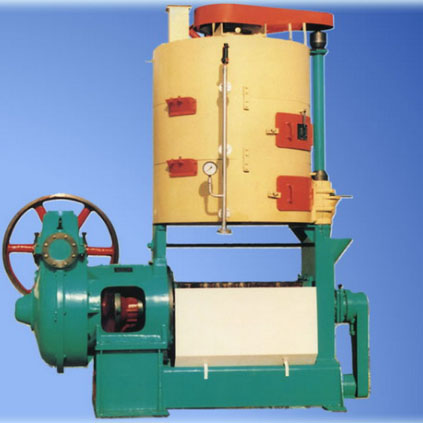

200A-3 oil press machine is suitable for extraction of vegetable oils from oil bearing seeds and nuts,such as rape-seed,groundnut,sesame-seed,cotton-seed,soybean,copra,sunflower-seed,etc. The pressing worms can be replaced as required by the user for the purpose of the extraction of oils from some other oil bearing materials,such as rice bran oil and the like.
Features
1、Ail such main parts of this machine as worm shaft.pressing worms,cage bars and so forth are made of high-grade alloy steel through hardening treatment.As a result in spite of the conditions of high temperature and abrasion under which they work day and night ,they keep durable for considerable period.
2、The combination of steaming and roasting is also one of the features of this machine ,it can be regulated in accordance with the varied requirements of various oil-bearing materials for the temperatures before pressing so as to get high quality oils.
3、The whole process form feeding,steaming.roasting up to the discharge of oil and cake goes on automatically and continuously,so it is easy to operate machine ,which results in the saving of labour.
Technical data
1.Capacity
|
Oil seed |
rape-seed |
groundnut kernel |
sesame seed |
cotton-seed kernel |
soya bean |
sunflower seed |
|
capacity in Kg/24hrs |
9000-10000 |
9000-10000 |
6500-7500 |
9000-10000 |
8000-9000 |
7000-8000 |
|
oil yield in Kg/24hrs |
33-38 |
38-45 |
42-47 |
30-33 |
11--14 |
22-25 |
|
percentage of oil in cake |
6--7 |
5--6 |
7--7.5 |
5--6 |
5--6 |
6--7 |
2、string shaft speed: 35rpm
3、Steam pressure 5-6kg/cm²
4、Pressing bores :front section: Φ180mm
5、Reaf section:Φ152mm
6、Pressing worm speed 8 rpm
7、Feed shalt speed 69rpm
8、Max temperature for seed stearning and roasting:125-128℃
9、Electric motor:18.5Kw BLY4-35-5.5kw BLY2-17-3kw
10、Net weight :5500kgs approx.
Overall dimensions(L×W×H) 2900×1850×4100mm
200A-3 oil press machine is suitable for extraction of vegetable oils from oil bearing seeds and nuts,such as rape-seed,groundnut,sesame-seed,cotton-seed,soybean,copra,sunflower-seed,etc.
We assure the most precise design, high quality 200A-3 oil press machine, mature project installation, and perfect after sale services.
