Soybean oil pretreatment

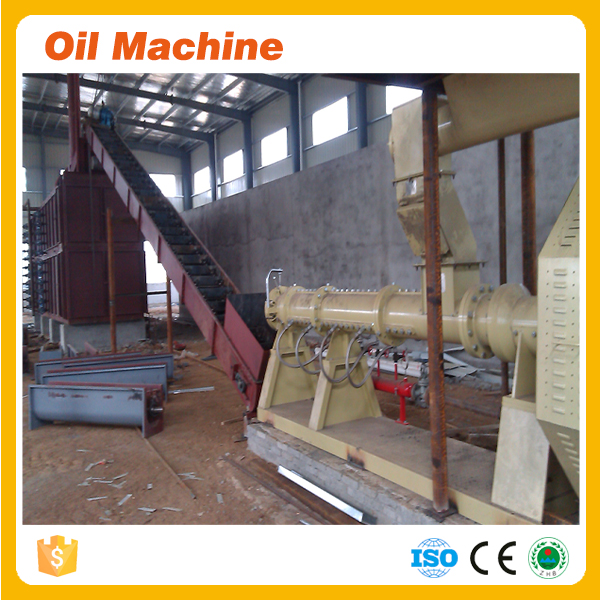

Soybean→Materials dosing →Magnetic separation→Cleaning→Crusher→Flaker→ Extrusion Puffing →Counter-current drying→To leaching plant
Soybean oil solvent extraction
Material embryos→Extraction→Wet meal→Evaporation→Cooling→Product meal packing
↓
Mixed oil→Filter→Negative pressure evaporation → Crude oil
↓
Solvent recovery
1. Solvent pumps: continuously spray solvent to the rotary-type extractor
2. Roary extractor: Spray and soak the pre-pressed cake with solvent so that oil fats can be diss-olved in solvent(form miscella).
After processing, you can get wet meal and miscella (mixed oil).
3. DTDC: used to separate the solvent from the wet meal.
4. Miscella tank 1st: pump the miscella (oil with solvent) in to the miscella 1st , then add saline water to it. The phospholipid in the miscella will react with the saline water, at last the reactant precipitate, reaching the goal of purifying.
5. Miscella tank 2nd: the purified miscella will be pumped into it.
6. Miscella stripping: it will remove the remaining solvent in miscella. And the solvent will be discharged to condenser for recycling.
7. Condensers: to cooling the solvent gas separated from the wet meal and miscella for recycling.

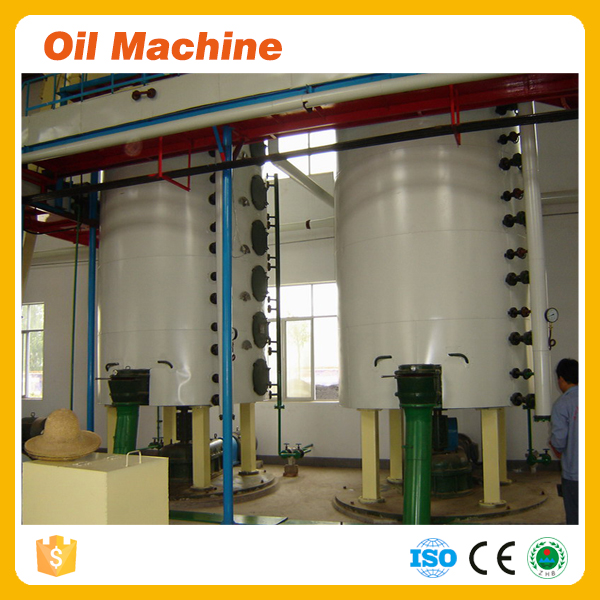

Crude oil - degumming - decolorization - deodorization - deacidification - dewaxing
