Major Parts: bucket elevator shell, tracing piece (conveyor), hoppers, driving pulley (head pulley), bend pulley (tail pulley), tensioning device, guide device, charging port (inlet port) and discharge port (outlet)
Applications: TDTG bucket elevator conveying grains, feed, particle and powder, oil etc.

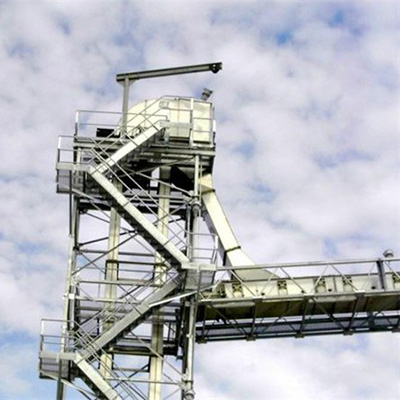

TDTG bucket elevator provides the most efficient and highest capacity vertical elevating of bulk materials. Employed by scientific designs of driving pulley, plastic covered head pulley for fireproofing and wear resistance, squirrel cage drum structure tail pulley with low broken rate, and unique tube designs of anti-run device, speed measuring and blocking material devices. This grain bucket elevator is widely applicable in charging/discharging control of ports, malt, oil, grains and feed industry etc.
Featured characteristics of grain conveying TDTG bucket elevator:
● Durable structure and sophisticated assemble. TDTG Bucket elevator adopts durable structure design, laser cutting on key elevator parts, and processing tooling applications in barrel flange welding, good sealing and high strength barrel undercut, and main shaft of head and tail pulley, and qualified nylon bucket, ensure highly precise assemble of equipment.
● Firm structure and reliable performance. Employed by welding fixture processing, TDTG bucket elevator has no heat distortion, and maintains high quality, perfect sealing, low vibration and noise in operation. Both forward and back word feed can be mounted basing on user’s need, working parts utilizes mechanical bending, riveting and welding to ensure good sealing, and high strength polyester pulley provides strong traction with low elongation durable and reliable.
● Powder explosion-proof transmission. Consisting of explosion proof motor, gear reducer, fluid coupling and shaft coupling, TDTG bucket elevator obtains highly stable transmission and prevent powered explosion effectively.
● Auto device ensures high conveying capacity and high safety. Equipped with gravity and screw tension device, automatic check device preventing machine blocking by power outages, speed deviation detection and automatic alarm for belt deviation ensures safety and normal production.
● Attractive appearance. Precise sandblasting and anti-corrosion treatment before painting assures beautiful bucket elevator appearance, compact and lightweight design, and low residue.
Technical parameters of TDTG bucket elevator:
|
Model |
Conveying Capacity(m³/h） |
Linear Velocity (m/s) |
Elevating Height (m) |
|
TDTG36/28 |
35 |
0.8-2.2 |
40 |
|
TDTG40/28 |
55 |
0.8-2.2 |
40 |
|
TDTG50/28 |
80 |
1.2-3.0 |
40 |
|
TDTG50/32 |
110 |
1.2-3.0 |
45 |
|
TDTG60/28 |
120 |
1.2-3.0 |
60 |
|
TDTG60/33 |
200 |
1.2-3.0 |
60 |
|
TDTG80/33 |
300 |
1.6-3.5 |
60 |
|
TDTG80/46 |
400 |
1.6-3.5 |
60 |
|
TDTG80/33×2 |
600 |
1.6-3.5 |
60 |
|
TDTG100/46×2 |
800 |
2.2-3.5 |
80 |
|
TDTG100/56×2 |
1000 |
2.2-3.5 |
80 |
|
TDTG120/46×3 |
1200 |
2.2-3.5 |
80 |
|
TDTG120/56×3 |
1400 |
2.2-3.5 |
80 |
|
TDTG100/46×4 |
1650 |
2.2-3.5 |
80 |
|
TDTG100/56×4 |
2000 |
2.2-3.5 |
80 |
Note: Parameters in the table are just common configuration. For any personalized requirement, please contact us free via email or call us for consultancy. We will give detailed answers and suggestion to your requirement.
Conveyors are widely applicable in port, oil, grain, corn deep processing, feed, flour, brewing, ores, chemicals, building materials, light industrials etc.
We concentrating on research, design, manufacturing and installation of conveyor equipments, including TDTG self-cleaning bucket elevator, en-masse conveyor, MU, MC, MS scraper conveyor, belt conveyor, air supported belt conveyor, screw conveyor and valve series.
We assure the most precise design, high quality conveyor, mature project installation, and perfect after sale services.
